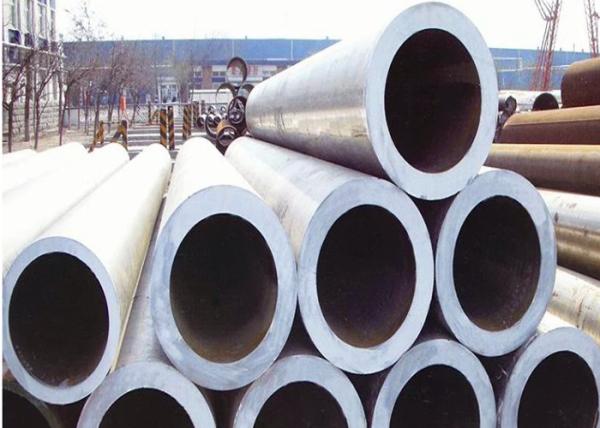

ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe
ASME SA 210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe are Medium Carbon Steel Tubes with max 0.35 % carbon content with combination of 0.29-1.06 % manganese. These Tubes are most commonly used for general purpose applications worldwide. ASME SA 210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe are ductile and strong Tubes with long wearing properties. These Tubes are manufactured as per ASME Specification and commercially referred as carbon steel Tubes.
| Product | ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe |
| Standard | ASME SA210 |
| Material | Grade C |
| Surface | Black paint, varnish, oil, galvanized |
| Pipe Length | 5.8 m to 12 m, can be customized according to the length requirements |
| Pipe Ends | Plain Ends, Beveled Ends |
| End Protector | 1. Plastic caps (small OD) 2. Iron protector (large OD) |
| Application | Fluid pipe, oil pipe, gas pipe, structure pipe, boiler tubes |
| Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size |
| Productivity | 50000 tons per month |
| Min Order | 20 ton |
| Remark | Special design available according to requirement |
Packing:
- Packed in wooden box or bundles protected with plastic paper, and suitably protected for sea-worthily delivery or as requested.
- The Product marking shall include the ASTM A210 or ASME SA210, size, heat no., Lot No. and Manufacture name or logo.
Chemical Properties of ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe
| Chemical Properties |
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
| max 0.35 | min 0.10 | 0.29-1.06 | 0.035 | 0.035 | – | – | – | – | – |
Mechanical Properties of ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe
| Grade | Tensile Strength σb(Mpa) | Yield Strength σs(Mpa) | Elongation δ(%) | Hardness (HRB) |
| | | | | |
| C | ≥275 | | 30 | ≤89 |
Features :
These tubes offer great resistivity to any stress and pitting cracks. There are no chances of any leakage. It bears maximum temperature and pressure. Increase the service of your equipment. These tubes have great surface finish and Provides extra strength to your equipment.
Applications of ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe:
ASTM A210 ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe offers high performance for industries like agriculture, manufacturing, oil & gas, which require reliable and rugged performance. We also offers a wide spectrum of these ASME SA210 GR C High Temperature Carbon Steel Tubes for use in a diverse range of industries including Power, Fertilizers, Cold Finisheds, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing, and the like.
FAQ:
1. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation as per your request.
2. Can I request to advance the shipment?
A: It depends on whether there is sufficient inventory in our warehouse.
3. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings.
4. What's your terms of payment?
A: T/T, L/C.
5.Do you accept custom design on size?
A: Yes, if the size is reasonable.
